Optimizing SYCL programs for Intel® FPGA cards

Optimizing SYCL code for Intel FPGAs requires a combination of understanding the FPGA hardware, the SYCL programming model, and the specific compiler features provided by Intel. Here are some general guidelines to optimize Intel FPGA SYCL code.

Compared to OpenCL, the Intel® oneAPI DPC++ compiler has enhanced features to detect possible optimizations( vectorization, static coalescing, etc ...). Nonetheless, some rules need to be followed to make sure the compiler is able to apply these optimizations.

Optimizing your design

As this course/workshop is only an introduction to the Intel® oneAPI for FPGA programming, we can't unfortunately provide all existing and possible optimizations. Many more optimizations can be found in the Intel official documentation.

Loop optimization

Loop unrolling is an optimization technique that aims to increase parallelism and, consequently, the throughput of certain computational tasks, particularly when implemented in hardware environments such as FPGAs.

  1. Pipelining Synergy: Loop unrolling often goes hand in hand with pipelining in FPGAs. When loops are unrolled, each unrolled iteration can be pipelined, leading to even greater throughput enhancements.

  2. Resource Utilization: While loop unrolling can significantly speed up operations, it also consumes more FPGA resources, like Logic Elements (LEs) and registers, because of the duplicated hardware. Hence, there's a trade-off between speed and resource utilization.

  3. Memory Access: Unrolling loops that involve memory operations can lead to increased memory bandwidth utilization. In cases where memory bandwidth is a bottleneck, unrolling can provide substantial performance improvements.

  4. Latency & Throughput: Loop unrolling doesn't necessarily reduce the latency of a single loop iteration (the time taken for one iteration to complete), but it can significantly improve the throughput (number of completed operations per unit time).

  5. Reduction in Control Logic: Unrolling can reduce the overhead associated with the loop control logic, such as incrementing the loop counter and checking the loop termination condition.

    Loop Optimization in HLS

  6. Unrolling loops will help to reduce the Initialization Interval (II) as you can notice on the previous figure.

Increasing throughput with loop unrolling

  • Unrolling loop can be done using the #pragma unroll <N>
  • <N> is the unroll factor
  • #pragma unroll 1 : prevent a loop in your kernel from unrolling
  • #pragma unroll : let the offline compiler decide how to unroll the loop
    handler.single_task<class example>([=]() {
    #pragma unroll
        for (int i = 0; i < 10; i++) {
            acc_data[i] += i;
        }
    #pragma unroll 1
    for (int k = 0; k < N; k++) {
        #pragma unroll 5
        for (int j = 0; j < N; j++) {
            acc_data[j] = j + k;
        }
    }
});
  • Consider the following code that you can find at oneAPI-samples/DirectProgramming/C++SYCL_FPGA/Tutorials/Features/loop_unroll
  • Note that Intel did not consider data alignment which could impact performance
  • We included #include <boost/align/aligned_allocator.hpp> to create aligned std::vector
  • The following SYCL code has been already compiled for you, execute it on the FPGA nodes for several data input size and record the throughput and kernel time
  • What do you observe ?
      1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
    //==============================================================
// Copyright Intel Corporation
//
// SPDX-License-Identifier: MIT
// =============================================================
#include <sycl/sycl.hpp>
#include <sycl/ext/intel/fpga_extensions.hpp>
#include <iomanip>
#include <iostream>
#include <string>
#include <vector>

#include <boost/align/aligned_allocator.hpp>

using namespace sycl;

using aligned64_vector= std::vector<float,boost::alignment::aligned_allocator<float,64>>;

// Forward declare the kernel name in the global scope.
// This FPGA best practice reduces name mangling in the optimization reports.
template <int unroll_factor> class VAdd;

// This function instantiates the vector add kernel, which contains
// a loop that adds up the two summand arrays and stores the result
// into sum. This loop will be unrolled by the specified unroll_factor.
template <int unroll_factor>
void VecAdd(const aligned64_vector &summands1,
            const aligned64_vector &summands2, aligned64_vector &sum,
            size_t array_size) {

#if FPGA_SIMULATOR
  auto selector = sycl::ext::intel::fpga_simulator_selector_v;
#elif FPGA_HARDWARE
  auto selector = sycl::ext::intel::fpga_selector_v;
#else  // #if FPGA_EMULATOR
  auto selector = sycl::ext::intel::fpga_emulator_selector_v;
#endif

  try {
    queue q(selector,property::queue::enable_profiling{});

    auto device = q.get_device();

    std::cout << "Running on device: "
              << device.get_info<sycl::info::device::name>().c_str()
              << std::endl;

    buffer buffer_summands1(summands1);
    buffer buffer_summands2(summands2);
    buffer buffer_sum(sum);

    event e = q.submit([&](handler &h) {
      accessor acc_summands1(buffer_summands1, h, read_only);
      accessor acc_summands2(buffer_summands2, h, read_only);
      accessor acc_sum(buffer_sum, h, write_only, no_init);

      h.single_task<VAdd<unroll_factor>>([=]()
                                         [[intel::kernel_args_restrict]] {
        // Unroll the loop fully or partially, depending on unroll_factor
        #pragma unroll unroll_factor
        for (size_t i = 0; i < array_size; i++) {
          acc_sum[i] = acc_summands1[i] + acc_summands2[i];
        }
      });
    });

    double start = e.get_profiling_info<info::event_profiling::command_start>();
    double end = e.get_profiling_info<info::event_profiling::command_end>();
    // convert from nanoseconds to ms
    double kernel_time = (double)(end - start) * 1e-6;

    std::cout << "unroll_factor " << unroll_factor
              << " kernel time : " << kernel_time << " ms\n";
    std::cout << "Throughput for kernel with unroll_factor " << unroll_factor
              << ": ";
    std::cout << std::fixed << std::setprecision(3)
#if defined(FPGA_SIMULATOR)
              << ((double)array_size / kernel_time) / 1e3f << " MFlops\n";
#else
              << ((double)array_size / kernel_time) / 1e6f << " GFlops\n";
#endif

  } catch (sycl::exception const &e) {
    // Catches exceptions in the host code
    std::cerr << "Caught a SYCL host exception:\n" << e.what() << "\n";

    // Most likely the runtime couldn't find FPGA hardware!
    if (e.code().value() == CL_DEVICE_NOT_FOUND) {
      std::cerr << "If you are targeting an FPGA, please ensure that your "
                   "system has a correctly configured FPGA board.\n";
      std::cerr << "Run sys_check in the oneAPI root directory to verify.\n";
      std::cerr << "If you are targeting the FPGA emulator, compile with "
                   "-DFPGA_EMULATOR.\n";
    }
    std::terminate();
  }
}

int main(int argc, char *argv[]) {
#if defined(FPGA_SIMULATOR)
  size_t array_size = 1 << 4;
#else
  size_t array_size = 1 << 26;
#endif

  if (argc > 1) {
    std::string option(argv[1]);
    if (option == "-h" || option == "--help") {
      std::cout << "Usage: \n<executable> <data size>\n\nFAILED\n";
      return 1;
    } else {
      array_size = std::stoi(option);
    }
  }

  aligned64_vector summands1(array_size);
  aligned64_vector summands2(array_size);

  aligned64_vector sum_unrollx1(array_size);
  aligned64_vector sum_unrollx2(array_size);
  aligned64_vector sum_unrollx4(array_size);
  aligned64_vector sum_unrollx8(array_size);
  aligned64_vector sum_unrollx16(array_size);

  // Initialize the two summand arrays (arrays to be added to each other) to
  // 1:N and N:1, so that the sum of all elements is N + 1
  for (size_t i = 0; i < array_size; i++) {
    summands1[i] = static_cast<float>(i + 1);
    summands2[i] = static_cast<float>(array_size - i);
  }

  std::cout << "Input Array Size:  " << array_size << "\n";

  // Instantiate VecAdd kernel with different unroll factors: 1, 2, 4, 8, 16
  // The VecAdd kernel contains a loop that adds up the two summand arrays.
  // This loop will be unrolled by the specified unroll factor.
  // The sum array is expected to be identical, regardless of the unroll factor.
  VecAdd<1>(summands1, summands2, sum_unrollx1, array_size);
  VecAdd<2>(summands1, summands2, sum_unrollx2, array_size);
  VecAdd<4>(summands1, summands2, sum_unrollx4, array_size);
  VecAdd<8>(summands1, summands2, sum_unrollx8, array_size);
  VecAdd<16>(summands1, summands2, sum_unrollx16, array_size);

  // Verify that the output data is the same for every unroll factor
  for (size_t i = 0; i < array_size; i++) {
    if (sum_unrollx1[i] != summands1[i] + summands2[i] ||
        sum_unrollx1[i] != sum_unrollx2[i] ||
        sum_unrollx1[i] != sum_unrollx4[i] ||
        sum_unrollx1[i] != sum_unrollx8[i] ||
        sum_unrollx1[i] != sum_unrollx16[i]) {
      std::cout << "FAILED: The results are incorrect\n";
      return 1;
    }
  }
  std::cout << "PASSED: The results are correct\n";
  return 0;
}
Unroll factor kernel execution time (ms) Throughput (GFlops)
1 77 0.447
2 58 0.591
4 43 0.804
8 40 0.857
16 39 0.882
  • Increasing the unroll factor improves throughput
  • Nonetheless, unrolling large loops should be avoided as it would require a large amount of hardware

Recording kernel time

  • In this example, we have also seen how to record kernel time.
  • Using the property `property::queue::enable_profiling{}`` adds the requirement that the runtime must capture profiling information for the command groups that are submitted from the queue
  • You can the capture the start & end time using the following two commands:
    • double start = e.get_profiling_info<info::event_profiling::command_start>();
    • double end = e.get_profiling_info<info::event_profiling::command_end>();

Caution with nested loops

  • Loop unrolling involves replicating the hardware of a loop body multiple times and reducing the trip count of a loop. Unroll loops to reduce or eliminate loop control overhead on the FPGA.
  • Loop-unrolling can be used to eliminate nested-loop structures.
  • However avoid unrolling the outer-loop which will lead to Resource Exhaustion and dramatically increase offline compilation

SIMD Work Items for ND-Range kernels

  • In the Reporting & Profiling section we have seen that vectorization can improve bandwidth

  • ND-range kernel should use instead of classical data-parallel kernels

  • The work-group size needs to be set using the attribute [[sycl::reqd_work_group_size(1, 1, REQD_WG_SIZE)]]
  • To specify the number of SIMD work_items, you will need to add the following attribute [[intel::num_simd_work_items(NUM_SIMD_WORK_ITEMS)]]
  • Note that NUM_SIMD_WORK_ITEMS should divide evenly REQD_WG_SIZE
  • The supported values for NUM_SIMD_WORK_ITEMS are 2, 4, 8, and 16

Example

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
...
h.parallel_for<VectorAddID>(
sycl::nd_range<1>(sycl::range<1>(2048), sycl::range<1>(128)),
    [=](sycl::nd_item<1> it)
    [[intel::num_simd_work_items(8),
    sycl::reqd_work_group_size(1, 1, 128)]] {
    auto gid = it.get_global_id(0);
    accessor_c[gid] = accessor_a[gid] + accessor_b[gid];
    });
});
...

  • The 128 work-items are evenly distributed among 8 SIMD lanes

  • 128/8 = 16 wide vector operation

  • The offline compiler coalesces 8 loads to optimize (reduce) the access to memory in case there are no data dependencies

Loop coalescing

Utilize the loop_coalesce attribute to instruct the Intel® oneAPI DPC++/C++ Compiler to merge nested loops into one, preserving the loop's original functionality. By coalescing loops, you can minimize the kernel's area consumption by guiding the compiler to lessen the overhead associated with loop management.

Coalesced two loops

[[intel::loop_coalesce(2)]]
for (int i = 0; i < N; i++)
   for (int j = 0; j < M; j++)
      sum[i][j] += i+j;

int i = 0;
int j = 0;
while(i < N){
  sum[i][j] += i+j;
  j++;
  if (j == M){
    j = 0;
    i++;
  }
}

Ignore Loop-carried dependencies

The ivdep attribute in Intel's oneAPI (as well as in other Intel compiler tools) is used to give a hint to the compiler about the independence of iterations in a loop. This hint suggests that there are no loop-carried memory dependencies that the compiler needs to account for when attempting to vectorize or parallelize the loop.

When you use ivdep, you're essentially telling the compiler: "Trust me, I've reviewed the code, and the iterations of this loop do not have dependencies on each other. So, you can safely vectorize or parallelize this loop for better performance."

ivdep attribute

#pragma ivdep
for (int i = 1; i < N; i++) {
    A[i] = A[i - 1] + B[i];
}

Caution

You should be very careful when using ivdep. Incorrectly using this pragma on a loop that does have dependencies can lead to unexpected results or undefined behavior. Always ensure that there are truly no dependencies in the loop before applying this hint.

Memory

Static coalescing

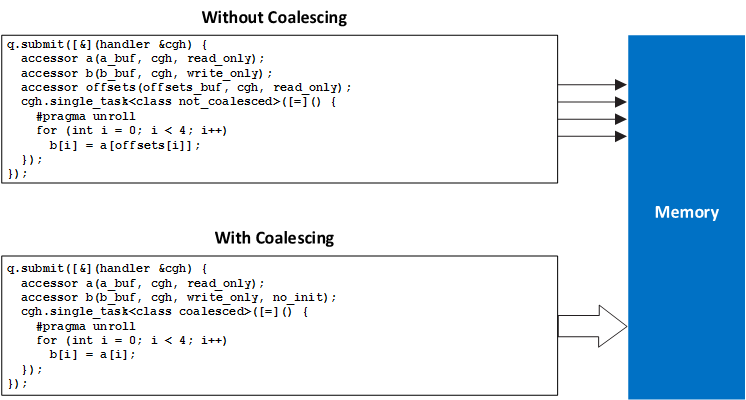

  • Static coalescing is performed by the Intel® oneAPI DPC++/C++ Compiler contiguous accesses to global memory can be merged into a single wide access.

  • For static memory coalescing to occur, your code should be structured so that the compiler can detect a linear access pattern at compile time. The initial kernel code depicted in the previous figure can leverage static memory coalescing, as all indices into buffers a and b increase with offsets recognizable during compilation.

FPGA Optimization Guide for Intel® oneAPI Toolkits -- Figure 17-21

Data structure alignment

In order to performance, structure alignment can be modified to be properly aligned. By default, the offline compiler aligns these elements based on:

  • The alignment should be a power of two.
  • The alignment should be a multiple of the least common multiple (LCM) of the word-widths of the structure member sizes.

Let's take a simple but clear example to understand why alignment is so important.

Removing padding and changing structure alignment

  • The following code show the impact of changing the alignmement and padding using three scenarii:

    • Default alignment and padding

    • Removing padding

    • Changing alignment

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
#include <iostream>
#include <typeinfo>

// oneAPI headers
#include <sycl/ext/intel/fpga_extensions.hpp>
#include <sycl/sycl.hpp>
#include <chrono>
using namespace std::chrono;

#define ALIGNMENT 64
#define IT 1024


constexpr int kVectSize = 2048;


template<typename T>
void test_structure( T* device,sycl::queue &q, int nb_iters){

      sycl::event e;
      const sycl::property_list props = {sycl::property::buffer::use_host_ptr()};

      auto start = high_resolution_clock::now();
      sycl::buffer buffer_device{device, sycl::range(kVectSize),props};
      e = q.submit([&](sycl::handler &h) {
       sycl::accessor accessor_device{buffer_device, h, sycl::read_write};
       h.single_task([=]() {
       for(int it=0;it < nb_iters ;it++){
        for (int idx = 0; idx < kVectSize; idx++) {
          accessor_device[idx].C = (int)accessor_device[idx].A + accessor_device[idx].B;
         }
        }
        });
       });

    sycl::host_accessor buffer_host(buffer_device);
    auto stop = high_resolution_clock::now();
    // convert from nanoseconds to ms
    duration<double> kernel_time = stop - start;

    std::cout  << " Time (" <<typeid(T).name()<<  ") : " << kernel_time.count() << " ms\n";
}

int main() {

  bool passed = true;
  try {
    // Use compile-time macros to select either:
    //  - the FPGA emulator device (CPU emulation of the FPGA)
    //  - the FPGA device (a real FPGA)
    //  - the simulator device
    #if FPGA_SIMULATOR
        auto selector = sycl::ext::intel::fpga_simulator_selector_v;
    #elif FPGA_HARDWARE
        auto selector = sycl::ext::intel::fpga_selector_v;
    #else  // #if FPGA_EMULATOR
        auto selector = sycl::ext::intel::fpga_emulator_selector_v;
    #endif

    // create the device queue
    sycl::queue q(selector,sycl::property::queue::enable_profiling{});

    // make sure the device supports USM host allocations
    auto device = q.get_device();

    std::cout << "Running on device: "
              << device.get_info<sycl::info::device::name>().c_str()
              << std::endl;

    // declare arrays and fill them
    typedef struct {
        char A;
        int  B;
        int  C;
    } mystruct;

    typedef struct __attribute__ ((packed)) {
        char A;
        int  B;
        int  C;
    } mystruct_packed;


    typedef struct __attribute__ ((packed)) __attribute__ ((aligned(16))) {
        char A;
        int  B;
        int  C;
    } mystruct_packed_aligned;

    //mystruct host_vec_a[kVectSize];
    //mystruct_packed host_vec_b[kVectSize];
    //mystruct_packed_aligned host_vec_c[kVectSize];

    mystruct* vec_a = new(std::align_val_t{ 64 }) mystruct[kVectSize];
    mystruct_packed* vec_b = new(std::align_val_t{ 64 }) mystruct_packed[kVectSize];
    mystruct_packed_aligned* vec_c = new(std::align_val_t{ 64 }) mystruct_packed_aligned[kVectSize];


    //mystruct * vec_a = static_cast<mystruct*>(aligned_alloc_device(ALIGNMENT,kVectSize*sizeof(mystruct),q));
    //mystruct_packed*vec_b = static_cast<mystruct_packed*>(aligned_alloc_device(ALIGNMENT,kVectSize*sizeof(mystruct_packed),q));
    //mystruct_packed_aligned*vec_c = static_cast<mystruct_packed_aligned*>(aligned_alloc_device(ALIGNMENT,kVectSize*sizeof(mystruct_packed_aligned),q));

    for (int i = 0; i < kVectSize; i++) {
        vec_a[i].A = vec_b[i].A = vec_c[i].A = char(std::rand() % 256);
        vec_a[i].B = vec_b[i].B = vec_c[i].B = std::rand();
        vec_a[i].C = vec_b[i].C = vec_c[i].C = std::rand();
    }

    std::cout << "Packed with default alignment" << kVectSize << std::endl;

    test_structure<mystruct>(vec_a,q,IT);
    test_structure<mystruct_packed>(vec_b,q,IT);
    test_structure<mystruct_packed_aligned>(vec_c,q,IT);


    delete[] vec_a;
    delete[] vec_b;
    delete[] vec_c;

    //sycl::free(vec_a,q);
    //sycl::free(vec_b,q);
    //sycl::free(vec_c,q);

  } catch (sycl::exception const &e) {
    // Catches exceptions in the host code.
    std::cerr << "Caught a SYCL host exception:\n" << e.what() << "\n";

    // Most likely the runtime couldn't find FPGA hardware!
    if (e.code().value() == CL_DEVICE_NOT_FOUND) {
      std::cerr << "If you are targeting an FPGA, please ensure that your "
                   "system has a correctly configured FPGA board.\n";
      std::cerr << "Run sys_check in the oneAPI root directory to verify.\n";
      std::cerr << "If you are targeting the FPGA emulator, compile with "
                   "-DFPGA_EMULATOR.\n";
    }
    std::terminate();
  }
  return passed ? EXIT_SUCCESS : EXIT_FAILURE;
}
Scenario Processing time (seconds)
Default alignment and padding 14.33
Removing padding 6.35
Changing alignment 0.03

Local memory

Local memory in ND-Range kernels

  • You can improve memory access by using local and private memory.
  • When you define a private array, group local memory, or a local accessor, the Intel® oneAPI DPC++/C++ Compiler generates kernel memory in the hardware. This kernel memory is often termed on-chip memory since it originates from memory resources, like RAM blocks, present on the FPGA.
  • Local or private memory is a fast memory that should be favored when resources allow.

Private memory

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
...
q.submit([&](handler &h) {
// Create an accessor for device global memory from buffer buff
accessor acc(buff, h, write_only);
cgh.single_task([=]() {
     // Declare a private array
     int T[N];
     // Write to private memory
     for (int i = 0; i < N; i++)
        T[i] = i;
     // Read from private memory and write to global memory through the accessor
     for (int i = 0; i < N; i+=2)
        acc[i] = T[i] + T[i+1];
     });
});
...
  • To set aside local memory that can be accessed and shared by every work item within a workgroup, establish a group-local variable within the function scope of a workgroup. Do this using the group_local_memory_for_overwrite function, illustrated in the subsequent example:

Local memory

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
...
q.submit([&](handler &h) {
    h.parallel_for(
        nd_range<1>(range<1>(256), range<1>(16)), [=](nd_item<1> item) {
        int local_id = item.get_local_id();
        auto ptr = group_local_memory_for_overwrite<int[16]>(item.get_group());
        auto& ref = *ptr;
        ref[local_id] = local_id++ ;
        });
    });
...
  • The ND-Range kernel has 16 workgroups with 16 work items for each group.
  • A group-local variable (int[16]) is created for each group and shared through a multi_ptr to all work-items of the same group

Settings memory banks

  • Local data can be stored in separate local memory banks for parallel memory accesses
  • Number of banks of a local memory can be adjusted (e.g., to increase the parallel access)
  • Add the following attributes [[intel::numbanks(#NB), intel::bankwidth(#BW)]]:
    • #NB : number of banks
    • #BW: bankwidth to be considered
  • Ex: [[intel::numbanks(8), intel::bankwidth(16)]]lmem[8][4];
    • No two element can be accessed in parallel in lmem
    • Single bank local memory
  • All rows accessible in parallel with numbanks(8)
  • Different configurations patterns can be adopted

Masking the last index

  • Intel's documentation states that "To enable parallel access, you must mask the dynamic access on the lower array index"
    1
2
3
4
5
    [[intel::numbanks(8), intel::bankwidth(16)]] int lmem[8][4];
#pragma unroll
for (int i = 0; i < 4; i+=2) {
    lmem[i][x & 0x3] = ...;
}

Exercice

  • Could you briefly describe the bank configuration of the following local memory declaration;
     [[intel::numbanks(4),intel::bankwidth(8)]] int lmem[2][4];

Local memory replication

Example

1
2
3
4
5
6
[[intel::fpga_memory,
intel::singlepump,
intel::max_replicates(3)]] int lmem[16];
lmem[waddr] = lmem[raddr] +
              lmem[raddr + 1] +
              lmem[raddr + 2];

  • The offline compiler can replicate the local memory
  • This allows to create multiple ports
  • Behaviour:
    • All read ports will be accessed in parallel
    • All write ports are connected together
    • Data between replicate is identical
  • Parallel access to all ports is possible but consumes more hardware resources
  • [[intel::max_replicates(N)]] control the replication factor

Task parallelism with Inter-Kernel Pipes

Pipes function as a first-come, first-served buffer system, linking different parts of a design. The Intel® oneAPI DPC++/C++ Compiler offers various pipe types:

  • Host Pipes: These establish a connection between a host and a device.

  • Inter-Kernel Pipes: These facilitate efficient and low-latency data transfer and synchronization between kernels. They enable kernels to interact directly using on-device FIFO buffers, which utilize FPGA memory. The Intel® oneAPI DPC++/C++ Compiler promotes simultaneous kernel operation. By employing inter-kernel pipes for data movement among concurrently running kernels, data can be transferred without waiting for a kernel to finish, enhancing your design's throughput.

  • I/O Pipes: This is a one-way connection to the hardware, either as a source or sink, which can be linked to an FPGA board's input or output functionalities. Such functionalities could encompass network interfaces, PCIe®, cameras, or other data acquisition or processing tools and protocols.

Inter-Kernel Pipes

  • We will only focus on Inter-Kernel Pipes to leverage task parallelism
  • As for OpenCL programming, pipes can be blocking or non-blocking
  • For Intel® oneAPI with FPGA, you need to include FPGA extension:
    #include <sycl/ext/intel/fpga_extensions.hpp>

Pipe creation and usage

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
// Using alias eases considerably their usage
using my_pipe = ext::intel::pipe<
                class InterKernelPipe, // An identifier for the pipe.
                int,                   // The type of data in the pipe.
                4>;                    // The capacity of the pipe.

// Single_task kernel 1
q.submit([&](handler& h) {
    auto A = accessor(B_in, h);
    h.single_task([=]() {
        for (int i=0; i < count; i++) {
            my_pipe::write(A[i]); // write a single int into the pipe

        }
    });
});

// Single_task kernel 2
q.submit([&](handler& h) {
    auto A = accessor(B_out, h);
    h.single_task([=]() {
        for (int i=0; i < count; i++) {
            A[i] = my_pipe::read(); // read the next int from the pipe
        }
    });
});

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
// Using alias eases considerably their usage
using my_pipe = ext::intel::pipe<
                class InterKernelPipe, // An identifier for the pipe.
                int,                   // The type of data in the pipe.
                4>;                    // The capacity of the pipe.

// Single_task kernel 1
q.submit([&](handler& h) {
    auto A = accessor(B_in, h);
    h.single_task([=]() {
        valid_write = false;
        for (int i=0; i < count; i++) {
            my_pipe::write(A[i],valid_write); // write a single int into the pipe

        }
    });
});

// Single_task kernel 2
q.submit([&](handler& h) {
    auto A = accessor(B_out, h);
    h.single_task([=]() {
        valid_read = false;
        for (int i=0; i < count; i++) {
            A[i] = my_pipe::read(valid_read); // read the next int from the pipe
        }
    });
});

Stalling pipes

  • Care should be taken when implementing pipes, especially when there is a strong imbalance between the consumer kernel reading from the pipe and the producer kernel that feed the pipe.
  • Stalling pipes can be disastrous when using blocking pipes
